Standard Size – 8’ x 4’
Thickness - 3,4,6,8,12,15 & 18mm
RAW MATERIALS
Associate BWP Marine Plywood is made
of selected 100 per cent Gurjan Timber
(Dipterocarpus species). Classified under
Class-I, this is a naturally durable timber
from the richest Gurjan timber forests
in Myanmar.
ADHESIVE
Bonded with Boiling Water Proof type
PF resin under high pressure and temperature.
CONSTRUCTION
Consecutive veneer's, which are full-length
veneers, are cross-laminated, with face
veneer thickness of 1.2mm for higher abrasion
resistance and improved mechanical properties
at the end use. Core veneers between both
the face veneers are of equal thickness,
having similar and uniform physical and
mechanical properties, to ensure absolute
balance construction.

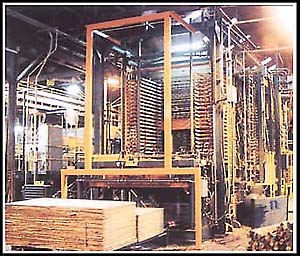

PRESSING
After assembling the veneers as per the
specific construction, it is pre-pressed.
The pre-pressed plywood is the hot-pressed
under high pressure and controlled temperature
for better compression to produce a dimensionally
stable and wrap free plywood.
|
